In the fascinating world of foundry casting, “cope and drag” are fundamental concepts that every aspiring metallurgist must grasp. These terms refer to the two halves of a mold used in the casting process. Mastering the use of cope and drag is essential for producing high-quality metal castings, which are crucial in a variety of industries, from automotive to aerospace.
Table of Contents
Introduction to Cope and Drag: Foundry Molding Fundamentals
Foundry casting is an ancient technique that involves pouring molten metal into a mold to create a desired shape. The mold, typically made of sand, is divided into two parts: the cope (top half) and the drag (bottom half). This separation allows for easier handling and more precise detailing of the cast object. The process begins with a pattern, a replica of the final product, which is used to create the mold cavity. Once the mold is formed, molten metal is poured into the cavity, allowed to cool, and then the mold is broken away to reveal the cast piece.
Components of Cope and Drag: Understanding Mold Structure
To appreciate the intricacies of cope and drag, it’s important to understand their components and roles in mold structure:
- Cope: The top part of the mold. It includes features such as sprues (vertical channels through which the metal is poured), risers (reservoirs that prevent cavities by compensating for metal shrinkage), and vents (tiny openings that allow gases to escape).
- Drag: The bottom part of the mold. It contains the mold cavity and, like the cope, features runners (horizontal channels that direct the molten metal from the sprue to the mold cavity) and gates (openings that control the flow of metal into the mold cavity).
- Flask: A frame that holds the sand mold in place. It is divided into two sections: the cope flask and the drag flask.
- Pattern: A replica of the object to be cast. Patterns can be made of wood, metal, plastic, or other materials. They are used to form the mold cavity in the sand.
- Core: Used for creating internal cavities within the cast object. The core is placed inside the mold cavity and is made of sand or other materials.
With a clear understanding of the mold’s components, the next step is to learn how to set up the cope and drag for the casting process.
Preparing Cope and Drag: Step-by-Step Setup Guide
Creating a cope and drag mold involves several detailed steps. Here’s a step-by-step guide to setting up the mold:
- Pattern Placement: Position the pattern on a flat surface or board.
- Drag Preparation: Place the drag flask over the pattern. Fill the flask with sand and compact it around the pattern to form the mold cavity.
- Leveling: Level the sand in the drag flask and smooth the surface.
- Cope Assembly: Invert the drag flask and place the cope flask on top. Align them carefully to ensure an accurate match.
- Sprue and Riser Placement: Insert sprue pins and riser forms in the cope flask. These will create the channels through which the molten metal will be poured and the reservoirs that will prevent shrinkage cavities.
- Sand Filling: Fill the cope flask with sand and compact it, ensuring the sprue and riser forms remain in place.
- Pattern Removal: Carefully separate the cope and drag flasks. Remove the pattern, leaving behind a precise mold cavity.
- Core Placement: If needed, place cores in the mold cavity to create internal features.
- Reassembly: Reassemble the cope and drag flasks, ensuring a tight fit to avoid metal leakage during pouring.
With the mold set up and ready, the final stage is the actual casting process, where the molten metal is poured into the prepared mold.
Casting with Cope and Drag: Process and Considerations
Once the mold is prepared, the casting process can begin. Here are the main steps and considerations for successful casting with cope and drag:
- Preheating the Mold: Preheating can help reduce thermal shock and improve metal flow.

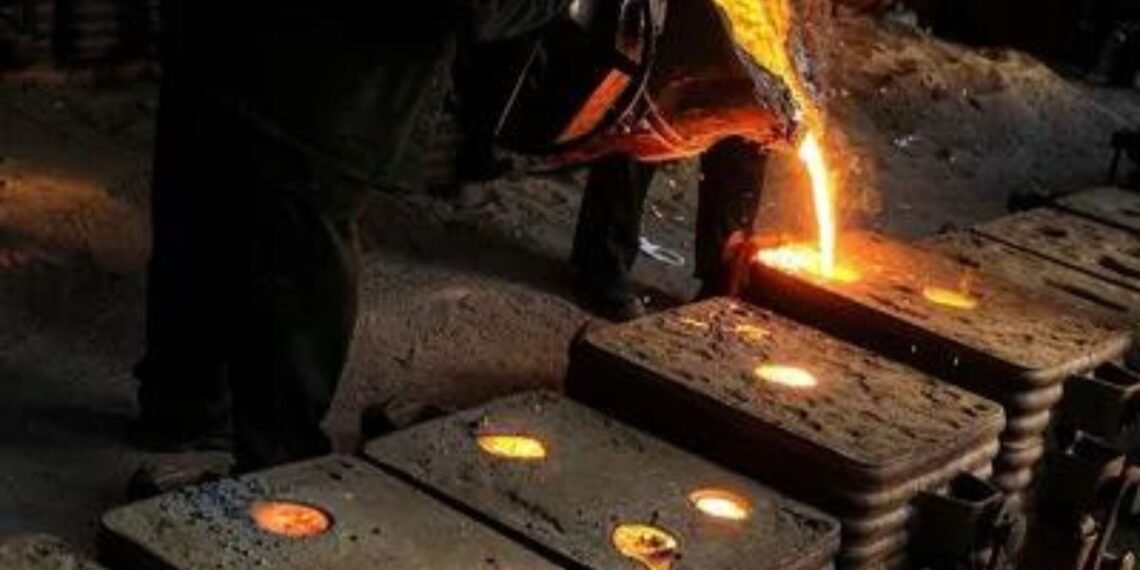

- Pouring: Pour the molten metal into the sprue. Ensure a steady and controlled pour to avoid turbulence, which can cause defects.
- Cooling: Allow the metal to cool and solidify. Cooling time depends on the metal type and the casting’s size and complexity.
- Mold Removal: Once cooled, remove the cope and drag flasks. Break away the sand mold to reveal the cast object.
- Finishing: Clean the casting by removing any excess metal (known as flash) and smooth any rough edges.
Each stage of the casting process is crucial for achieving the desired results. Now, let’s wrap up with some final thoughts on the importance of mastering cope and drag.
Final Thoughts on Cope and Drag in Foundry Casting
Understanding the basics of cope and drag in foundry casting is crucial for producing precise and high-quality metal castings. From the initial setup of the mold to the final finishing touches on the cast object, each step requires careful attention to detail. By mastering these fundamentals, foundry workers can ensure the creation of durable and accurate castings, meeting the stringent demands of various industries. Whether you are a novice or an experienced professional, a thorough knowledge of cope and drag will enhance your casting proficiency and contribute to your success in the foundry industry.
